Product Description:
The tie rod end is an essential component of the steering system in a vehicle. It connects the steering linkage to the steering knuckle, allowing for the transfer of steering input from the steering wheel to the wheels. Here's an introduction to the tie rod end:
Function: The tie rod end serves as a crucial link between the steering system and the wheels. It is responsible for transmitting the steering motion and force from the steering gearbox or rack to the steering knuckle, which ultimately steers the wheels.
Ball Joint Connection: The tie rod end features a ball joint at one end, which is attached to the steering knuckle. The ball joint allows for rotational movement, enabling the wheels to turn left or right in response to steering input.
Threaded Shaft: The other end of the tie rod end consists of a threaded shaft. This threaded shaft connects to the steering linkage, which can include components such as the tie rod, center link, or drag link. The threaded connection allows for adjustment of the tie rod length, which is important for achieving proper wheel alignment.
Adjustability: The adjustability of the tie rod end allows for alignment adjustments and the setting of toe-in or toe-out angles. Toe-in refers to the slight inward angling of the wheels, while toe-out refers to a slight outward angling. Proper alignment helps ensure even tire wear, stable handling, and optimal steering response.
Wear and Tear: Due to constant use, the tie rod end can experience wear and tear over time. Factors such as road conditions, driving habits, and environmental factors can contribute to its deterioration. Common signs of a worn tie rod end include excessive play or looseness in the steering, uneven tire wear, or steering wheel vibration.
Replacement: When a tie rod end becomes worn or damaged, it is important to replace it promptly. Replacement typically involves removing the old tie rod end from the steering knuckle and steering linkage, and installing a new one. Proper torquing of the threaded connection and alignment adjustment are necessary during the replacement process.
Professional Installation: Due to the critical role and safety implications of the tie rod end, it is recommended to have a professional automotive technician or mechanic perform the installation. They have the expertise and proper tools to ensure the tie rod end is correctly installed, aligned, and torqued to the manufacturer's specifications.
Quality and Compatibility: When replacing a tie rod end, it is important to choose a high-quality component that matches the specifications and requirements of the vehicle. Original equipment manufacturer (OEM) or aftermarket tie rod ends that meet OEM standards are commonly available options.
Features:
The tie rod end possesses several characteristics that contribute to its functionality and performance within a vehicle's steering system. Here are some key characteristics of a tie rod end:
- Articulation: The tie rod end is designed with a ball joint that allows for articulation or rotational movement. This enables the tie rod end to accommodate the steering motion and changes in direction as initiated by the driver through the steering wheel.
- Adjustable Length: Tie rod ends often have a threaded shaft, which allows for length adjustment. This adjustability is crucial for setting the proper wheel alignment and achieving the desired toe-in or toe-out angles. Toe-in refers to the slight inward angling of the wheels, while toe-out refers to a slight outward angling.
- Durability: Tie rod ends are designed to withstand the forces and stresses encountered during steering and suspension movements. They are typically made of robust materials, such as forged steel or aluminum alloys, to ensure durability and resistance to wear, corrosion, and impacts.
- Ball Joint Design: The ball joint in the tie rod end is engineered to provide smooth movement and reduce friction. It allows for controlled rotation of the tie rod end, helping to maintain proper steering and handling characteristics.
- Sealing and Lubrication: Many tie rod ends are designed with seals and grease fittings to facilitate lubrication. Regular greasing helps to ensure smooth articulation, reduce wear, and extend the lifespan of the tie rod end.
- Compatibility: Tie rod ends are manufactured to fit specific vehicle makes, models, and years. They are designed to meet the specifications and requirements of the vehicle's steering system, ensuring proper alignment and compatibility with other steering components.
- Safety: Tie rod ends play a crucial role in maintaining steering stability and control. They help transmit the driver's steering input to the wheels, ensuring responsive and predictable handling. High-quality tie rod ends are essential for safe and reliable steering performance.
| Model NO. |

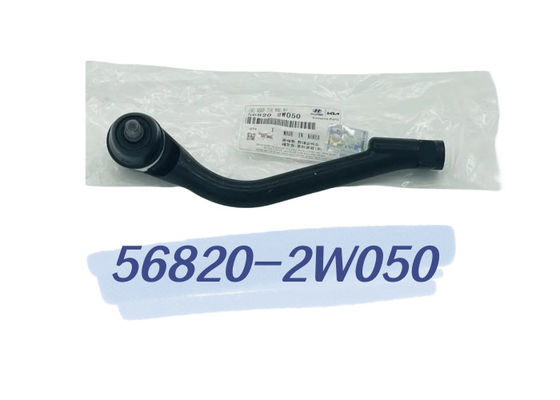

56820-2W050 |
Type: |
Tie Rod End |
| Material: |
Iron |
Warranty: |
12 Monhts |
| Standard |
Standard |
Condition |
New |
| MOQ |
10PCS |
Price |
Negotiation |
| Samples |
Support |
Specification |
Standard |
| Trademark |
OEM |
Origin |
China |
| Delivery Time |
10-20day |
Transport Package |
Standard |
| HS Code |
8708949090 |
Production Capacity |
100000pieces/Month |
Technical Parameters:
The technical parameters of a tie rod end can vary depending on the make, model, and year of the vehicle. Thread Size: It refers to the diameter and pitch of the threaded shaft on the tie rod end and it is important to match it with the existing steering linkage. Ball Joint Type: The ball joint can have different designs and specifications and it is necessary to match it with the original component or the vehicle's specifications. Length: The length of the tie rod end refers to the distance between the center of the ball joint and the center of the threaded shaft. It is necessary to select the one with the correct length for ensuring proper alignment and steering performance.Grease Fitting: Some tie rod ends come with a grease fitting, which allows for periodic lubrication of the ball joint to maintain smooth movement.
Material: They are mostly made of forged steel, cast iron, or aluminum alloy. The material used can influence the strength, durability, and performance of the tie rod end.OEM Part Number: Each tie rod end has a unique OEM part number and it is advisable to match the same for compatibility.Fitment: Select a tie rod end suitable for the make, model, and year of the vehicle for proper fitment and performance.Quality Standards: It is recommended to choose a tie rod end according to recognized quality standards for reliability and safety.
Applications:
In reality, the tie rod end is a crucial component of the steering system in a vehicle and is used in the following manner:
Steering Input: When the driver turns the steering wheel, the steering motion is transferred through the steering column to the steering gearbox or rack.
Transfer of Motion: The steering gearbox or rack converts the rotational motion from the steering wheel into linear motion. This motion is then transmitted to the tie rod, which is connected to the steering linkage.
Connection to Steering Knuckle: The tie rod end is attached to the steering knuckle, which is part of the wheel assembly. The tie rod end's ball joint is connected to the steering knuckle, allowing for rotational movement.
Steering Angle Transfer: As the steering linkage moves due to the driver's input, the tie rod end transfers the steering angle and force from the steering linkage to the steering knuckle. This causes the wheels to turn left or right, thus steering the vehicle.
Wheel Alignment Adjustment: The threaded shaft of the tie rod end allows for length adjustment. This adjustability is important for setting the proper wheel alignment, specifically the toe-in or toe-out angles. Toe-in refers to the slight inward angling of the wheels, while toe-out refers to a slight outward angling. Proper alignment helps ensure even tire wear and stable handling.
Suspension Movement: The tie rod end also accommodates the movement of the suspension system. As the vehicle encounters bumps, road imperfections, or uneven surfaces, the tie rod end's ball joint allows the steering knuckle to move up and down while maintaining the connection to the steering linkage.
Safety and Stability: The tie rod end's function is crucial for maintaining safe and stable steering. It ensures that the driver's steering input is effectively transferred to the wheels, providing responsive and predictable handling.
Overall, the tie rod end serves as a vital link between the steering system and the wheels, enabling the driver to control the direction of the vehicle. It allows for precise steering, alignment adjustments, and contributes to the overall safety and stability of the vehicle's steering system.
Comments :
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in carton boxes and then in wooden case.
Q2. What is your terms of payment?
A: T/T accept.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DAF etc.
Q4. How about your delivery time?
A: Generally, it will take 3 to 7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit.
