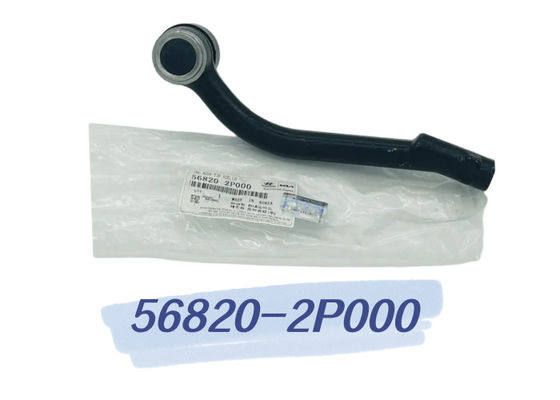

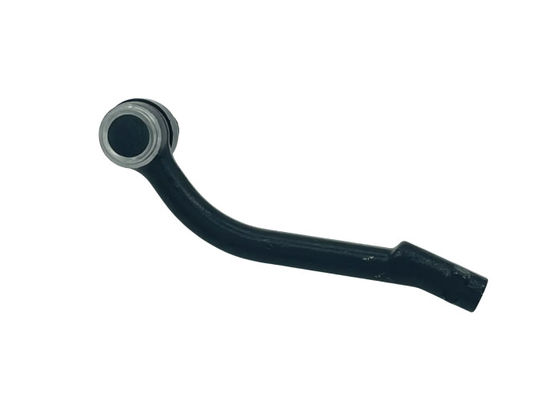

Standard Hyundai Automobile Parts Tie Rod End 56820-2P000 For KIA Sport

Product Description:

The tie rod end is an essential component of the steering system in a vehicle, and it is responsible for connecting the steering linkage to the steering knuckle, allowing for the transfer of steering input from the steering wheel to the wheels. Here is a look at the importance of a tie rod end and its basic components.

The tie rod end is a crucial link between the steering system and the wheels, and it is responsible for transmitting the steering motion and force from the steering gearbox or rack to the steering knuckle, which ultimately steers the wheels.

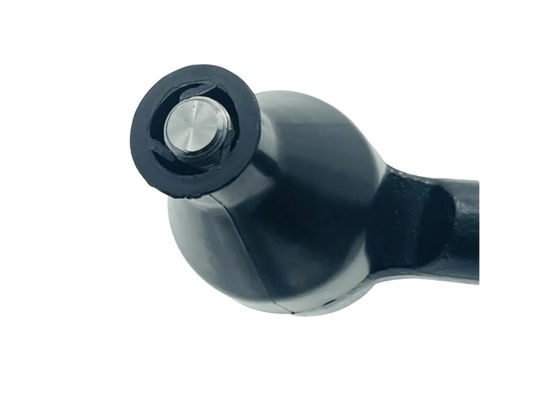

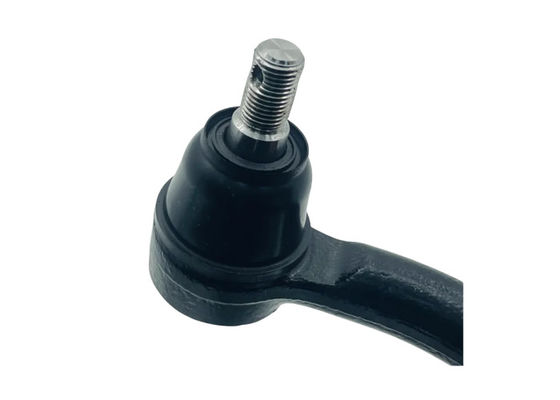

The tie rod end features a ball joint at one end, which is attached to the steering knuckle. This ball joint permits rotational movement, allowing the wheels to turn left or right in response to steering input.

The other end of the tie rod end consists of a threaded shaft. This connects to the steering linkage, which can be components such as the tie rod, center link, or drag link. This threaded connection allows for adjustment of the tie rod length, which is vital for correct wheel alignment.

Due to the adjustability of the tie rod end, it is possible to make alignment adjustments and also set toe-in or toe out angles. Toe-in refers to the slight inward angling of the wheels, and toe-out refers to a slight outward angling. Maintaining correct alignment is beneficial in terms of ensuring even tire wear, improved stability when handling, plus ensuring optimal steering response.

The tie rod end can experience wear caused by normal use, as well as deteriorate due to certain factors such as road conditions, driving habits, and environmental concerns. This can result in excessive play or looseness in the steering, uneven tire wear, or steering wheel vibration.

When a tie rod end becomes worn or damaged, it must be replaced promptly. This involves replacing the old tie rod end with a new one on the steering knuckle and steering linkage, ensuring that it is correctly installed and properly torqued to the manufacturer's specifications. It is recommended to seek professional automotive technician or mechanic assistance to ensure the tie rod end is correctly installed.

When replacing a tie rod end, it is important to select a high-quality component that matches the vehicle's requirements and specifications. There are two commonly available options, with Original Equipment Manufacturer (OEM) products, or aftermarket tie rod ends that meet OEM standards both being good choices.

Features:

The tie rod end possesses several characteristics that contribute to its functionality and performance within a vehicle's steering system.

The articulation of a tie rod end is made possible by its ball joint, and is necessary for accommodating changes in direction through the steering wheel. Additionally, their adjustable length is crucial for setting the proper wheel alignment and achieving the desired toe-in or toe-out angles. To make sure that they can withstand the forces and stresses associated with steering and suspension movements, tie rod ends are typically made of materials that are highly durable, such as forged steel or aluminum alloys.

The ball joint design of a tie rod end allows for smooth and controlled rotation, and seals and grease fittings ensure lubrication for enhanced articulation and longer lifespan. Moreover, tie rod ends are designed to be compatible with the vehicle's steering system specifications, as well as other steering components.

Finally, proper functioning of the tie rod end is essential for safe steering performance. High-quality tie rod ends are a must for transmitting the driver's steering input and providing responsive and predictable handling.

Technical Parameters:

The technical parameters of a tie rod end can vary depending on the specific make, model, and year of the vehicle. Here, we will share some common technical parameters associated with tie rod ends.

Firstly, let's talk about Thread Size. The thread size refers to the diameter and pitch of the threaded shaft on the tie rod end. It is important to match the thread size of the replacement tie rod end with the existing steering linkage to ensure proper fitment.

Next, let's move on to Ball Joint Type. Tie rod ends typically come with a ball joint at one end, which allows for rotational movement. The ball joint can have different designs and specifications depending on the vehicle. It is important to match the ball joint type with the original component or the vehicle's specifications.

Furthermore, the Length of the tie rod end refers to the distance between the center of the ball joint and the center of the threaded shaft. It is important to select a tie rod end with the correct length to ensure proper alignment and steering performance.

The presence or absence of a Grease Fitting can vary depending on the specific tie rod end. A grease fitting, also known as a zerk fitting, allows for periodic lubrication of the ball joint to maintain smooth movement and extend the component's lifespan.

The Material is also important. Tie rod ends are typically made of durable materials such as forged steel, cast iron, or aluminum alloy. The material used can affect the strength, durability, and performance of the tie rod end.

Lastly, each tie rod end is assigned a unique OEM Part Number by the vehicle manufacturer. This part number allows for accurate identification and ensures compatibility with the original equipment. It is beneficial to match the OEM part number to ensure a proper fit.

Additionally, tie rod ends are designed for specific vehicle applications. Therefore, it is essential to select one that is compatible with the make, model, and year of the vehicle to ensure proper fitment and performance.

Finally, look for tie rod ends that adhere to recognized Quality Standards, as this will ensure reliability and safety. Those that meet or exceed original equipment manufacturer (OEM) standards are recommended for optimal performance and durability.

Applications:

In reality, the tie rod end is a crucial component of the steering system in a vehicle and is used in the following manner:

Steering Input: When the driver turns the steering wheel, the steering motion is transferred through the steering column to the steering gearbox or rack.

Transfer of Motion: The steering gearbox or rack converts the rotational motion from the steering wheel into linear motion. This motion is then transmitted to the tie rod, which is connected to the steering linkage.

Connection to Steering Knuckle: The tie rod end is attached to the steering knuckle, which is part of the wheel assembly. The tie rod end's ball joint is connected to the steering knuckle, allowing for rotational movement.

Steering Angle Transfer: As the steering linkage moves due to the driver's input, the tie rod end transfers the steering angle and force from the steering linkage to the steering knuckle. This causes the wheels to turn left or right, thus steering the vehicle.

Wheel Alignment Adjustment: The threaded shaft of the tie rod end allows for length adjustment. This adjustability is important for setting the proper wheel alignment, specifically the toe-in or toe-out angles. Toe-in refers to the slight inward angling of the wheels, while toe-out refers to a slight outward angling. Proper alignment helps ensure even tire wear and stable handling.

Suspension Movement: The tie rod end also accommodates the movement of the suspension system. As the vehicle encounters bumps, road imperfections, or uneven surfaces, the tie rod end's ball joint allows the steering knuckle to move up and down while maintaining the connection to the steering linkage.

Safety and Stability: The tie rod end's function is crucial for maintaining safe and stable steering. It ensures that the driver's steering input is effectively transferred to the wheels, providing responsive and predictable handling.

Overall, the tie rod end serves as a vital link between the steering system and the wheels, enabling the driver to control the direction of the vehicle. It allows for precise steering, alignment adjustments, and contributes to the overall safety and stability of the vehicle's steering system.
