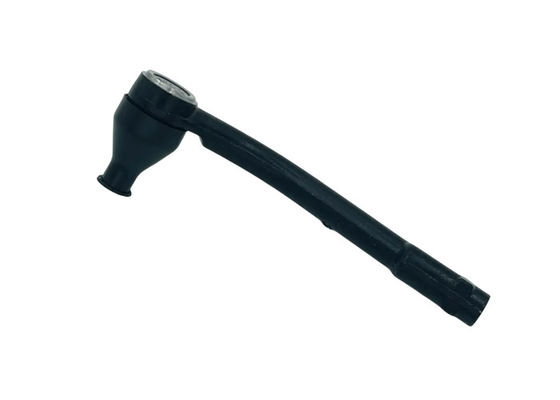

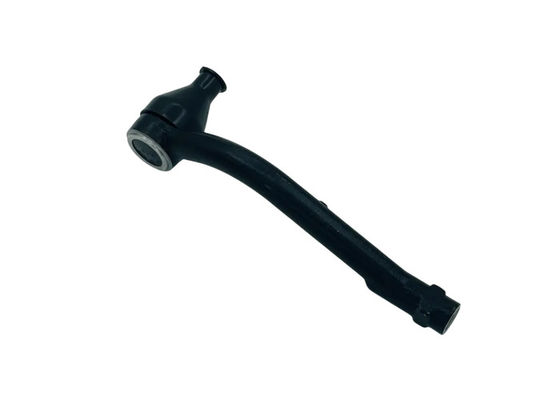

Tie Rod End Hyundai Kia Spare Parts 56820-2B900 Ball Joint For Hyundai SANTA FE 2006

Product Description:

The tie rod end is an essential component of the steering system in a vehicle. It connects the steering linkage to the steering knuckle, allowing for the transfer of steering input from the steering wheel to the wheels. Here's an introduction to the tie rod end:

Function: The tie rod end serves as a crucial link between the steering system and the wheels. It is responsible for transmitting the steering motion and force from the steering gearbox or rack to the steering knuckle, which ultimately steers the wheels.

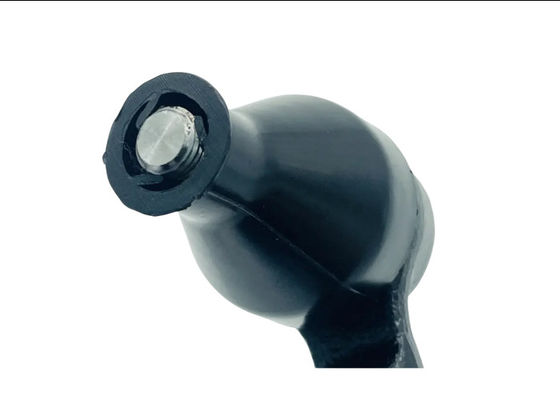

Ball Joint Connection: The tie rod end features a ball joint at one end, which is attached to the steering knuckle. The ball joint allows for rotational movement, enabling the wheels to turn left or right in response to steering input.

Threaded Shaft: The other end of the tie rod end consists of a threaded shaft. This threaded shaft connects to the steering linkage, which can include components such as the tie rod, center link, or drag link. The threaded connection allows for adjustment of the tie rod length, which is important for achieving proper wheel alignment.

Adjustability: The adjustability of the tie rod end allows for alignment adjustments and the setting of toe-in or toe-out angles. Toe-in refers to the slight inward angling of the wheels, while toe-out refers to a slight outward angling. Proper alignment helps ensure even tire wear, stable handling, and optimal steering response.

Wear and Tear: Due to constant use, the tie rod end can experience wear and tear over time. Factors such as road conditions, driving habits, and environmental factors can contribute to its deterioration. Common signs of a worn tie rod end include excessive play or looseness in the steering, uneven tire wear, or steering wheel vibration.

Replacement: When a tie rod end becomes worn or damaged, it is important to replace it promptly. Replacement typically involves removing the old tie rod end from the steering knuckle and steering linkage, and installing a new one. Proper torquing of the threaded connection and alignment adjustment are necessary during the replacement process.

Professional Installation: Due to the critical role and safety implications of the tie rod end, it is recommended to have a professional automotive technician or mechanic perform the installation. They have the expertise and proper tools to ensure the tie rod end is correctly installed, aligned, and torqued to the manufacturer's specifications.

Quality and Compatibility: When replacing a tie rod end, it is important to choose a high-quality component that matches the specifications and requirements of the vehicle. Original equipment manufacturer (OEM) or aftermarket tie rod ends that meet OEM standards are commonly available options.

Features:

Tie rod ends are an important part of a vehicle's steering system and they possess several key characteristics that help ensure its functionality and performance. These include articulation, adjustable length, durability, ball joint design, sealing and lubrication, compatibility, and safety.

Articulation refers to the tie rod end’s ball joint which allows for rotational movement, enabling it to accommodate the steering motion initiated by the driver’s movement of the steering wheel. The adjustable length of the tie rod end is crucial for setting the correct wheel alignment through the toe-in and toe-out angles. Additionally, tie rod ends are usually constructed of forged steel or aluminum alloys to ensure durability and greater resistance to wear, corrosion, and impacts.

The ball joint design of the tie rod end ensures smooth movement while reducing friction and facilitating controlled rotation. Sealing and lubrication of the tie rod end is made possible through seals and grease fittings that allow regular greasing for smooth articulation as well as reduced wear. Furthermore, the compatibility of the tie rod end with a specific vehicle’s steering system guarantees the proper alignment of the wheels.

In terms of safety, tie rod ends are paramount for transmitting the driver’s steering inputs to the wheels. High-quality tie rod ends are required so as to guarantee safe and reliable steering performance.

Technical Parameters:

The technical parameters of a tie rod end can vary depending on the specific make, model, and year of the vehicle. Here are some common technical parameters associated with tie rod ends:

• Thread Size: The thread size refers to the diameter and pitch of the threaded shaft on the tie rod end. It is important to match the thread size of the replacement tie rod end with the existing steering linkage to ensure proper fitment.
• Ball Joint Type: Tie rod ends typically feature a ball joint at one end, which allows for rotational movement. The ball joint can have different designs and specifications depending on the vehicle. It is important to match the ball joint type with the original component or the vehicle's specifications.
• Length: The length of the tie rod end refers to the distance between the center of the ball joint and the center of the threaded shaft. It is crucial to select a tie rod end with the correct length to ensure proper alignment and steering performance.
• Grease Fitting: Some tie rod ends come equipped with a grease fitting, also known as a zerk fitting. This allows for periodic lubrication of the ball joint to maintain smooth movement and extend the component's lifespan. The presence or absence of a grease fitting can vary depending on the specific tie rod end.
• Material: Tie rod ends are typically made of durable materials such as forged steel, cast iron, or aluminum alloy. The material used can affect the strength, durability, and performance of the tie rod end.
• OEM Part Number: Each tie rod end is assigned a unique OEM part number by the vehicle manufacturer. This part number allows for accurate identification and ensures compatibility with the original equipment. When replacing a tie rod end, it is beneficial to match the OEM part number to ensure a proper fit.
• Fitment: Tie rod ends are designed for specific vehicle applications. It is essential to select a tie rod end that is compatible with the make, model, and year of the vehicle to ensure proper fitment and performance.
• Quality Standards: Tie rod ends that meet or exceed original equipment manufacturer (OEM) standards are recommended for optimal performance and durability. Look for tie rod ends that adhere to recognized quality standards to ensure reliability and safety.

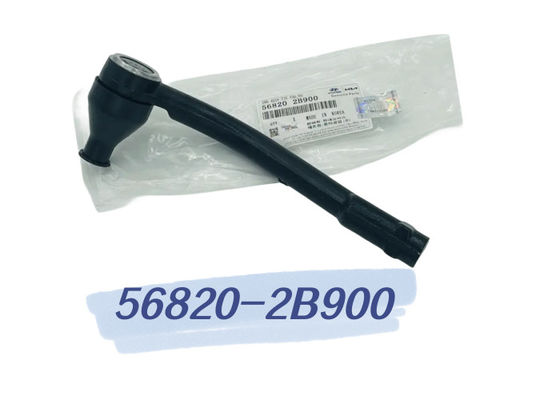

• Model NO.	56820-2B900	Type:	Tie Rod End
  Material:	Iron	Warranty:	12 Monhts
  Standard	Standard	Condition	New
  MOQ	10PCS	Price	Negotiation
  Samples	Support	Specification	Standard
  Trademark	OEM	Origin	China
  Delivery Time	10-20day	Transport Package	Standard
  HS Code	8708949090	Production Capacity	100000pieces/Month

Applications:

In reality, the tie rod end is a crucial component of the steering system in a vehicle and is used in the following manner:

Steering Input: When the driver turns the steering wheel, the steering motion is transferred through the steering column to the steering gearbox or rack.

Transfer of Motion: The steering gearbox or rack converts the rotational motion from the steering wheel into linear motion. This motion is then transmitted to the tie rod, which is connected to the steering linkage.

Connection to Steering Knuckle: The tie rod end is attached to the steering knuckle, which is part of the wheel assembly. The tie rod end's ball joint is connected to the steering knuckle, allowing for rotational movement.

Steering Angle Transfer: As the steering linkage moves due to the driver's input, the tie rod end transfers the steering angle and force from the steering linkage to the steering knuckle. This causes the wheels to turn left or right, thus steering the vehicle.

Wheel Alignment Adjustment: The threaded shaft of the tie rod end allows for length adjustment. This adjustability is important for setting the proper wheel alignment, specifically the toe-in or toe-out angles. Toe-in refers to the slight inward angling of the wheels, while toe-out refers to a slight outward angling. Proper alignment helps ensure even tire wear and stable handling.

Suspension Movement: The tie rod end also accommodates the movement of the suspension system. As the vehicle encounters bumps, road imperfections, or uneven surfaces, the tie rod end's ball joint allows the steering knuckle to move up and down while maintaining the connection to the steering linkage.

Safety and Stability: The tie rod end's function is crucial for maintaining safe and stable steering. It ensures that the driver's steering input is effectively transferred to the wheels, providing responsive and predictable handling.

Overall, the tie rod end serves as a vital link between the steering system and the wheels, enabling the driver to control the direction of the vehicle. It allows for precise steering, alignment adjustments, and contributes to the overall safety and stability of the vehicle's steering system.

Packing and Shipping:

How To Replace:

The need for tie rod end replacement depends on several factors, including the condition of the component, symptoms of wear or damage, and the recommendation of a qualified automotive professional. Here are some indicators that may suggest the tie rod end needs replacement:

Excessive Play or Looseness: If you notice excessive play or looseness in the steering, such as a noticeable delay or slack before the wheels respond to steering input, it could be a sign of a worn or damaged tie rod end. Excessive play can compromise steering control and should be addressed promptly.

Uneven Tire Wear: Uneven tire wear, particularly on the front tires, can be an indication of a problem with the tie rod end or the vehicle's alignment. If the tie rod end is worn or damaged, it can cause the wheels to be misaligned, leading to uneven tire wear patterns.

Steering Wheel Vibration: A worn or damaged tie rod end can result in steering wheel vibrations, especially during acceleration or at higher speeds. This vibration can be felt through the steering wheel and may indicate an issue with the tie rod end or other steering components.

Visible Damage or Wear: Inspect the tie rod end visually for any signs of damage, such as cracks, bends, or excessive corrosion. Additionally, check for signs of wear, such as worn-out rubber boots that protect the ball joint or signs of grease leakage. These visual cues may indicate the need for tie rod end replacement.

Failed Inspection: During routine vehicle inspections or alignment checks, a qualified technician may identify excessive wear or damage to the tie rod end. In such cases, replacement of the tie rod end may be recommended to ensure proper steering performance and safety.

Remember, regular maintenance and inspections are essential for identifying and addressing potential issues with steering components, including the tie rod end. Timely replacement of a worn or damaged tie rod end is crucial to maintain safe and reliable steering performance.
