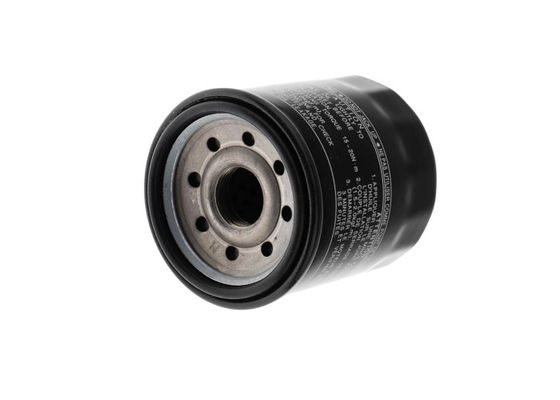

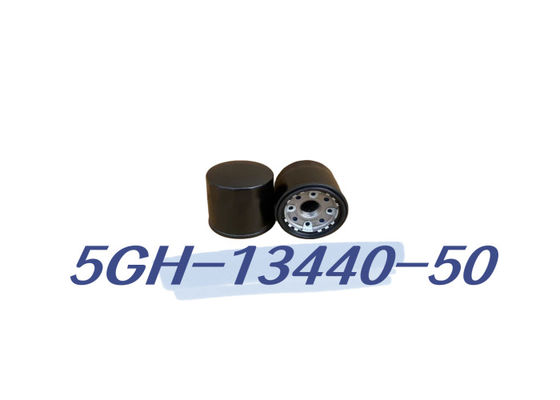

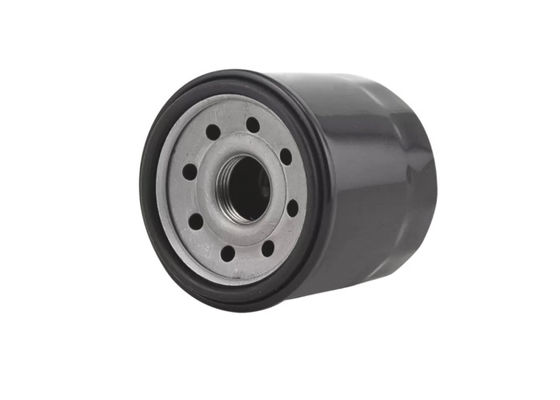

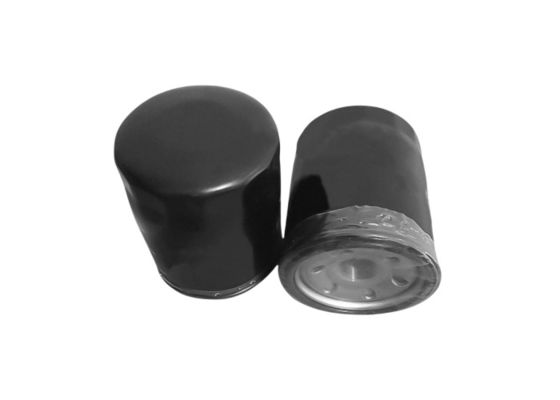

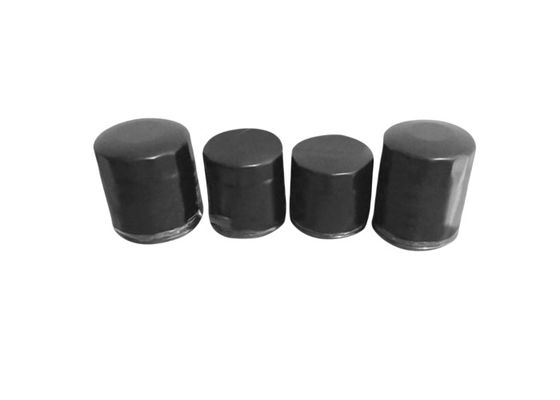

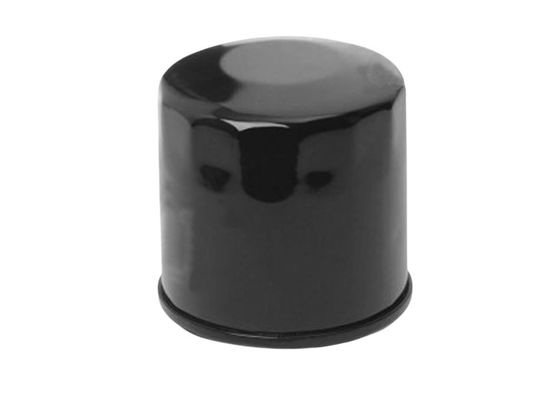

Good Auto Parts Oil Filters 5GH-13440-50 Paper Core With 100% Filter Wood Pulp Paper
Product Description:
Auto parts oil filters are essential components that help protect the engine by removing contaminants and impurities from the engine oil. They play a crucial role in maintaining clean oil circulation, which is vital for optimal engine performance and longevity.
Oil filters consist of several key elements:
- Housing/Casing: The housing or casing of the oil filter is typically made of metal or high-quality plastic. It provides structural support and contains the internal components of the filter.
- Filter Media: The filter media is the heart of the oil filter. It is a porous material that traps and retains contaminants while allowing clean oil to pass through. Common filter media materials include cellulose, synthetic fibers, or a blend of both. The choice of filter media depends on the filtration efficiency and overall performance requirements.
- End Caps: The oil filter has end caps at both ends that secure the filter media within the housing. These end caps are typically made of metal or plastic and are designed to create a tight seal to prevent unfiltered oil from bypassing the filter.
- Anti-Drainback Valve: Many oil filters feature an anti-drainback valve. This valve prevents the oil from draining back into the engine when the vehicle is turned off. It helps maintain oil pressure and ensures immediate lubrication of critical engine components when the engine starts.
- Relief Valve: Some oil filters include a relief valve or bypass valve. This valve opens when the oil flow exceeds the filter's capacity or when the filter becomes clogged. It allows unfiltered oil to bypass the filter temporarily, ensuring continued engine lubrication in case of filter blockage or excessive pressure.
- Gasket/O-Ring: The oil filter has a gasket or O-ring that creates a secure seal between the filter and the engine block. This seal prevents oil leakage and ensures proper oil flow through the filter without any bypass.
Auto parts oil filters come in various types, including spin-on filters and cartridge filters. Spin-on filters are self-contained units that include the filter media and housing in a single unit, making them easy to install and replace. Cartridge filters consist of a replaceable filter element that is inserted into a separate housing, requiring only the filter element to be replaced during maintenance.
The Functions of an Oil Filter:
The oil filter plays an important role in the performance and maintenance of a vehicle’s engine. It serves five major purposes:
Contaminant Removal
The oil filter captures various contaminants present in the engine oil, such as dirt, metal particles, sludge, and debris. By removing these impurities, the oil filter helps prevent them from entering and potentially damaging the engine.
Lubrication Maintenance
Adequate lubrication of the engine’s moving parts is essential for proper engine function. The oil filter keeps the oil free from contaminants that could interfere with lubrication. By reducing friction and wear, the oil filter helps promote smoother operation and protect the engine from premature failure.
Engine Protection
The oil filter provides an additional barrier between any contaminants and the engine. By removing particles from the oil, it helps shield critical engine components such as bearings, pistons, cylinders, and camshafts from damage and extend the engine’s life.
Sludge Prevention
Many contaminants that enter the oil will accumulate and form sludge, a mixture of oxidized oil and other substances. Sludge can clog up oil passages, block flow, and stop proper lubrication. By keeping contaminants out of the oil, the oil filter helps prevent the formation of sludge.
Maintenance of Oil Viscosity
The oil filter is also necessary for preserving engine oil’s viscosity, or thickness. Oil can thicken or break down due to contaminants, affecting its lubricating effectiveness. The oil filter helps maintain the oil’s viscosity, allowing it to do its job properly.
Technical Parameters:
| Model NO. |
5GH-13440-50 (26-8037) |
Type |
Oil Filter |
| Filtration Grade |
Paper Core |
Structure |
Cartridge Filter |
| Specification |
Height*Outer Diameter: 120*110mm |
Pattern |
Dry |
| Filtration Efficiency |
More Than 99.7 % |
Warranty |
10000km |
| Transport Package |
Color Box+Export Carton+Pallet |
Color |
Accept Customized |
| Origin |
China |
Production Capacity |
50000 Psc/ Per Month |
| HS Code |
8421230000 |
Applicable models |
Honda,Suzuki |
Applications:
Auto oil filters are essential components of internal combustion engines used in many vehicles, including cars, trucks, motorcycles, SUVs, and more. They are designed to fit particular engine models and sizes to effectively filter out contaminants and protect the engine from wear and tear. Here is a look at some of the key applications of auto oil filters:
1. Passenger vehicles utilize oil filters for sedans, hatchbacks, coupes, and convertibles. The filters help preserve engine performance and reliability by preventing contaminants from entering the engine and for clean oil circulation.
2. Commercial vehicles, such as trucks, buses, vans, and delivery vehicles, require oil filters for heavy-duty tasks, long journeys, and extended engine running. Oil filters act as safeguards, minimizing downtime and maximizing engine longevity.
3. Off-Road and Recreational vehicles, such as ATVs, UTVs, dirt bikes, RVs, and motorhomes, use oil filters to keep engines clean and functional while out in the wild or on the road.
4. Motorcycles, from street bikes to touring bikes, rely on oil filters for clean engine oil and optimal lubrication. This helps reduce the risk of damage to the engine.
5. Marine Engines also take advantage of oil filters to combat corrosion and ensure reliable performance despite exposure to saltwater and other contaminants.
Although oil filters are used similarly in the various engines they are meant for, the exact type and size may differ due to engine design. Each vehicle’s manufacturer offers guidelines and instructions on the appropriate oil filter for its models.
Support and Services:
We provide technical support and service for Automotive Oil Filters. Our technicians are available to answer any questions and provide guidance on proper installation and maintenance. We also offer free replacement filters in the event of a defect or malfunction.
Packing and Shipping:
Automotive Oil Filters' packaging and shipping are designed to ensure that they arrive in pristine condition. Automotive oil filters are packaged in sturdy cardboard boxes and then secured with bubble wrap before being shipped. The boxes are sealed with a tamper-evident seal to ensure that the product has not been tampered with. The shipping label contains all the relevant information about the product, including the product name and the weight of the package. The package is then sent via a reliable courier service.
