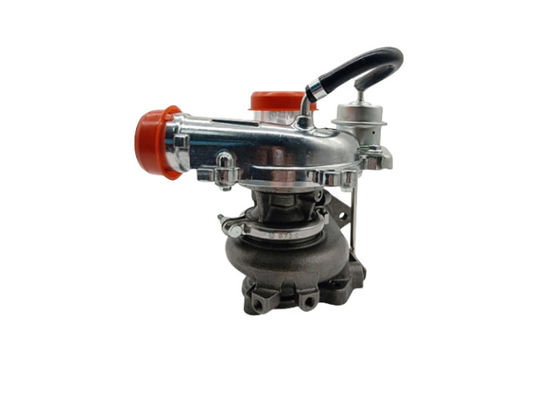

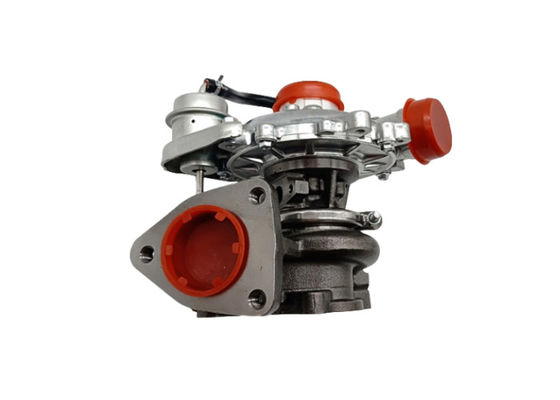

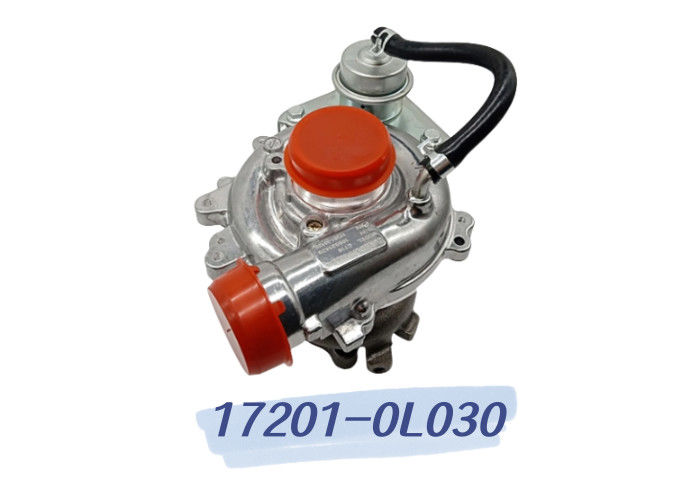

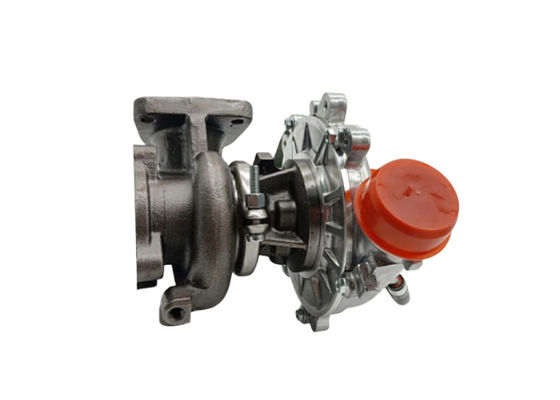

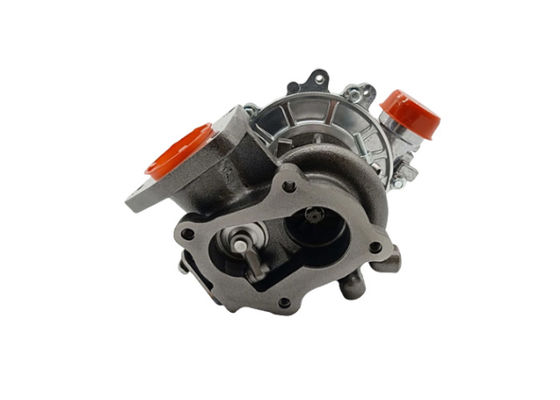

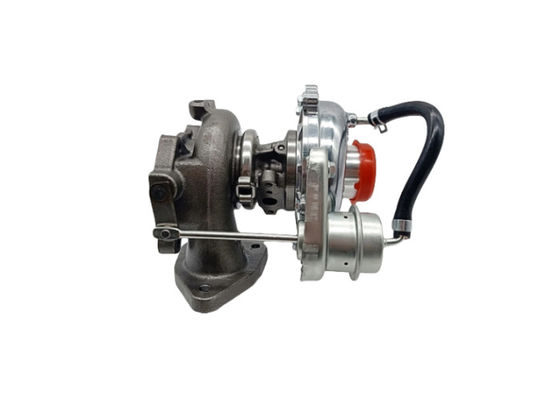

17201-0L030 Toyota Cruiser Hiace 2.5L Diesel Engine Turbocharger auto engine components

Product Description:

A turbocharger, often referred to as a turbo, is a device that enhances the performance of an internal combustion engine by increasing the amount of air entering the combustion chamber. It is a form of forced induction system that utilizes the engine's exhaust gases to drive a turbine wheel, which in turn powers a compressor wheel. This compressor wheel draws in ambient air, compresses it, and delivers it to the engine at a higher pressure and density.

The turbocharger consists of several components: the turbine housing, turbine wheel, compressor housing, compressor wheel, center section, shaft and bearings, wastegate, and intercooler. The turbine housing is the outer casing that houses the turbine wheel and is typically made of cast iron or stainless steel designed to withstand high exhaust gas temperatures. The turbine wheel is connected to the exhaust side of the turbocharger and is driven by the flow of exhaust gases. It is usually made of a heat-resistant alloy and consists of blades or vanes that harness the energy of the exhaust gases to spin the turbine wheel. The compressor housing surrounds the compressor wheel and is responsible for directing the compressed air from the compressor wheel to the engine's intake system. Compressor housings are typically made of aluminum or cast iron. The compressor wheel is connected to the intake side of the turbocharger and is driven by the turbine wheel. It draws air from the atmosphere, compresses it, and delivers it to the engine at a higher pressure. Compressor wheels have aerodynamic blades designed to efficiently compress the incoming air. The center section (also known as the bearing housing or cartridge) houses the shaft assembly and bearings that support the rotating components, and contains the lubricating oil passages and seals to prevent oil leakage. The shaft then connects the turbine wheel to the compressor wheel and rotates on a set of bearings, lubricated by oil to reduce friction and dissipate heat. Many turbochargers feature a wastegate, which is a valve that diverts exhaust gases away from the turbine wheel to regulate the boost pressure. Finally, in some turbocharged applications, an intercooler is used to cool the compressed air before it enters the engine's intake system. The intercooler reduces the temperature of the compressed air, increasing its density and improving engine performance.

Features:

Technical Parameters:

Twin Turbocharging: Twin turbocharging involves the use of two identical turbochargers, typically of the same size, working in parallel to provide increased airflow and boost pressure. Each turbocharger is responsible for supplying compressed air to a separate set of cylinders or exhaust banks in an engine. Twin turbos can offer improved throttle response, reduced turbo lag, and higher power output compared to a single turbocharger setup.

Variable Geometry Turbochargers (VGT): Variable geometry turbochargers feature adjustable vanes on the turbine side that can change their angle or position to optimize the turbine's efficiency. By altering the flow characteristics of the exhaust gases, VGTs can enhance boost response at low engine speeds while maintaining high efficiency at higher RPMs. This technology helps to overcome turbo lag and provides better control over the boost pressure throughout the engine's operating range.

Two-Stage Turbocharging: Two-stage turbocharging combines the benefits of both low-pressure and high-pressure turbochargers. In this setup, a smaller turbocharger (low-pressure) operates at lower engine speeds to provide quick response, while a larger turbocharger (high-pressure) takes over at higher RPMs to deliver greater boost pressure and airflow. Two-stage turbocharging improves performance across a wider RPM range and optimizes engine efficiency.

Active Wastegate Control: Wastegates are used in turbocharger systems to regulate the boost pressure. Traditional wastegates utilize a spring-loaded mechanism to control the opening and closing of the wastegate valve. However, newer turbocharger systems incorporate active wastegate control, where an electronic actuator adjusts the wastegate's position based on real-time data from the engine management system. This allows for precise and dynamic control of the boost pressure, resulting in improved performance and fuel efficiency.

Applications:

Customization:

We offer Automotive Spare Parts with brand name C&Z, model number 17201-0L030, place of origin China, certification ISO9001/TS16949/E-MARK/R90, minimum order quantity 1pcs, price according to specific order, packaging details color box+export carton+pallet, delivery time 7-35days, payment terms TT/WU/MG, supply ability 300000sets/month, status have in stock, ETS component turbine, quality high preformance, specification 20*20*30, size OEM standard size. Our Automotive Spare Parts are designed with Turbocharger Efficiency and Mapping, turbo, Turbocharger Cooling and High Pressure Fuel Injection for improved performance.

Packing and Shipping:

Packaging and Shipping of Automotive Spare Parts:

• The parts will be safely packed in a cardboard box.
• Packaging materials will be designed to protect the parts from damage.
• Shipping will be done through a trusted courier service.
• The parts will be shipped within the specified time frame.
