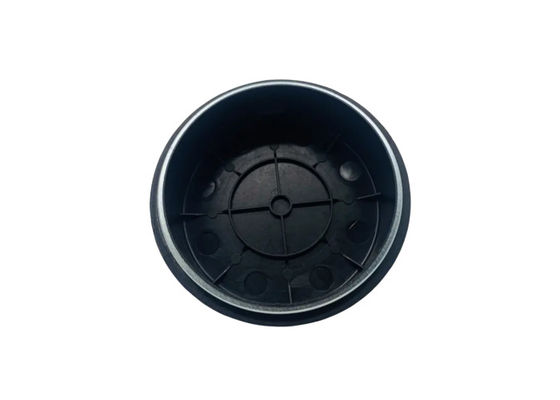

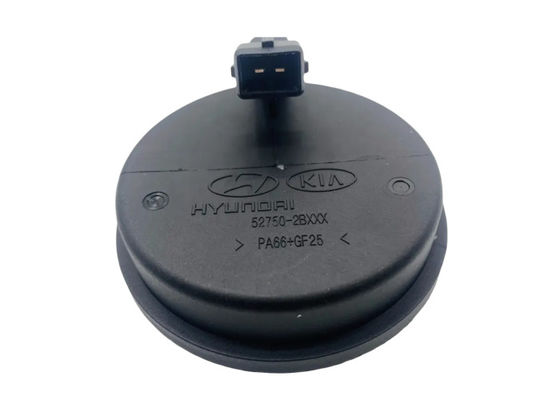

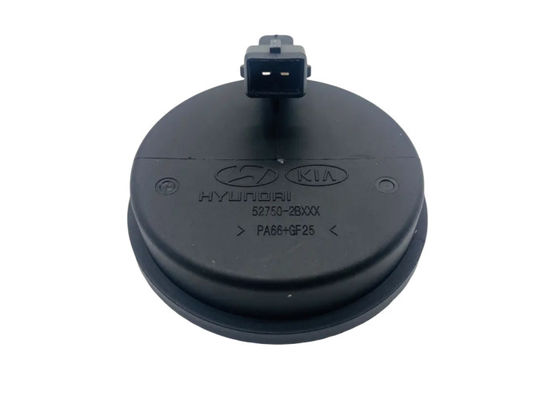

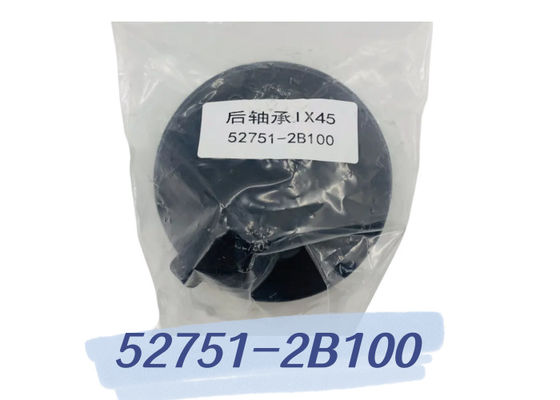

52751-2B100 Auto ABS Wheel Speed Sensor Cover For Hyundai Santa FE 2006

————————————————Product Description————————————————

The ABS (Anti-lock Braking System) wheel speed sensor is an important component of a vehicle's braking system. It is responsible for monitoring the rotational speed of the wheels and providing vital information to the ABS control module. Here's an introduction to the ABS wheel speed sensor.

Function——The primary function of the ABS wheel speed sensor is to measure the rotational speed of each wheel. It does this by using a sensor and a toothed or magnetic ring (also known as a tone ring) installed on the wheel hub or axle. As the wheel rotates, the sensor detects the toothed or magnetic pattern on the ring and generates an electrical signal.

Speed Detection——The ABS wheel speed sensor detects the speed of each wheel individually, allowing the ABS control module to monitor and compare the rotational speed of all four wheels in real-time. Any significant differences in wheel speed can indicate wheel lock-up or wheel slip during braking.

Preventing Wheel Lock-up——When the ABS control module detects a potential wheel lock-up, it rapidly adjusts the braking pressure to that specific wheel. By modulating the brake pressure, the ABS system prevents the wheel from fully locking up, improving steering control and maintaining traction with the road surface.

Traction Control——The information provided by the ABS wheel speed sensors is also used by the vehicle's traction control system, if equipped. Traction control uses the wheel speed data to identify wheels that are spinning faster than others, indicating loss of traction. It then applies braking or engine power modulation to regain control and prevent wheel spin.

ABS Warning Light——If there is a malfunction or issue with the ABS wheel speed sensor or its associated components, the ABS warning light on the vehicle's instrument cluster may illuminate. This serves as an indication to the driver that there is a problem with the ABS system, and it requires attention and potential repair.

Types of ABS Wheel Speed Sensors——There are two main types of ABS wheel speed sensors: magnetic and hall effect. Magnetic sensors use a magnet and a coil to generate an electrical signal, while hall effect sensors use a magnetic field and a semiconductor element to detect wheel speed.

Location——The ABS wheel speed sensors are typically located near each wheel, either on the wheel hub, brake caliper, or axle. They are positioned in close proximity to the tone ring or wheel-mounted sensor ring to accurately measure wheel speed.

———————————————————Features————————————————————

Here are some common characteristics associated with ABS wheel speed sensors:


1,Sensor Type: ABS wheel speed sensors can be of different types, including magnetic sensors and hall effect sensors. Magnetic sensors use a magnet and coil to generate an electrical signal, while hall effect sensors utilize a magnetic field and a semiconductor element for speed detection.

2,Mounting Location: ABS wheel speed sensors are typically mounted in close proximity to the wheel hub, brake caliper, or axle. The exact location can vary based on the vehicle's design.

3,Sensor Housing: The ABS wheel speed sensor is housed in a protective casing. The housing is designed to shield the sensor from external elements, such as water, dirt, and debris, that could potentially affect its performance.

4,Cable/Wiring: ABS wheel speed sensors are connected to the vehicle's electrical system through a cable or wiring harness. The cable is designed to transmit the electrical signals generated by the sensor to the ABS control module.

5,Connector Type: The connector on the ABS wheel speed sensor allows for a secure electrical connection to the vehicle's wiring harness. Connector types can vary, such as blade connectors, pin connectors, or plug connectors, depending on the vehicle manufacturer.

6,Sensor Ring: The ABS wheel speed sensor works in conjunction with a toothed or magnetic ring, also known as a tone ring or sensor ring, which is mounted on the wheel hub or axle. The sensor reads the pattern on the ring to determine the wheel's rotational speed.

7,Operating Range: ABS wheel speed sensors are designed to operate within a specific temperature range. The operating range ensures that the sensor functions reliably under normal operating conditions and can withstand temperature variations experienced during vehicle operation.

8,Signal Output: The ABS wheel speed sensor generates an electrical signal that corresponds to the rotational speed of the wheel. This signal is transmitted to the ABS control module, which uses the information to determine if any wheel lock-up or wheel slip is occurring.

9,Durability: ABS wheel speed sensors are built to withstand the harsh operating conditions encountered on the road. They are designed to be durable and reliable, capable of enduring vibrations, temperature fluctuations, and exposure to moisture and contaminants.

10,Compatibility: ABS wheel speed sensors are manufactured to be compatible with specific vehicle models and their corresponding ABS systems. It is crucial to ensure that the sensor is compatible with the vehicle's make, model, and year before installation.

—————————————————Technical Parameters———————————————
